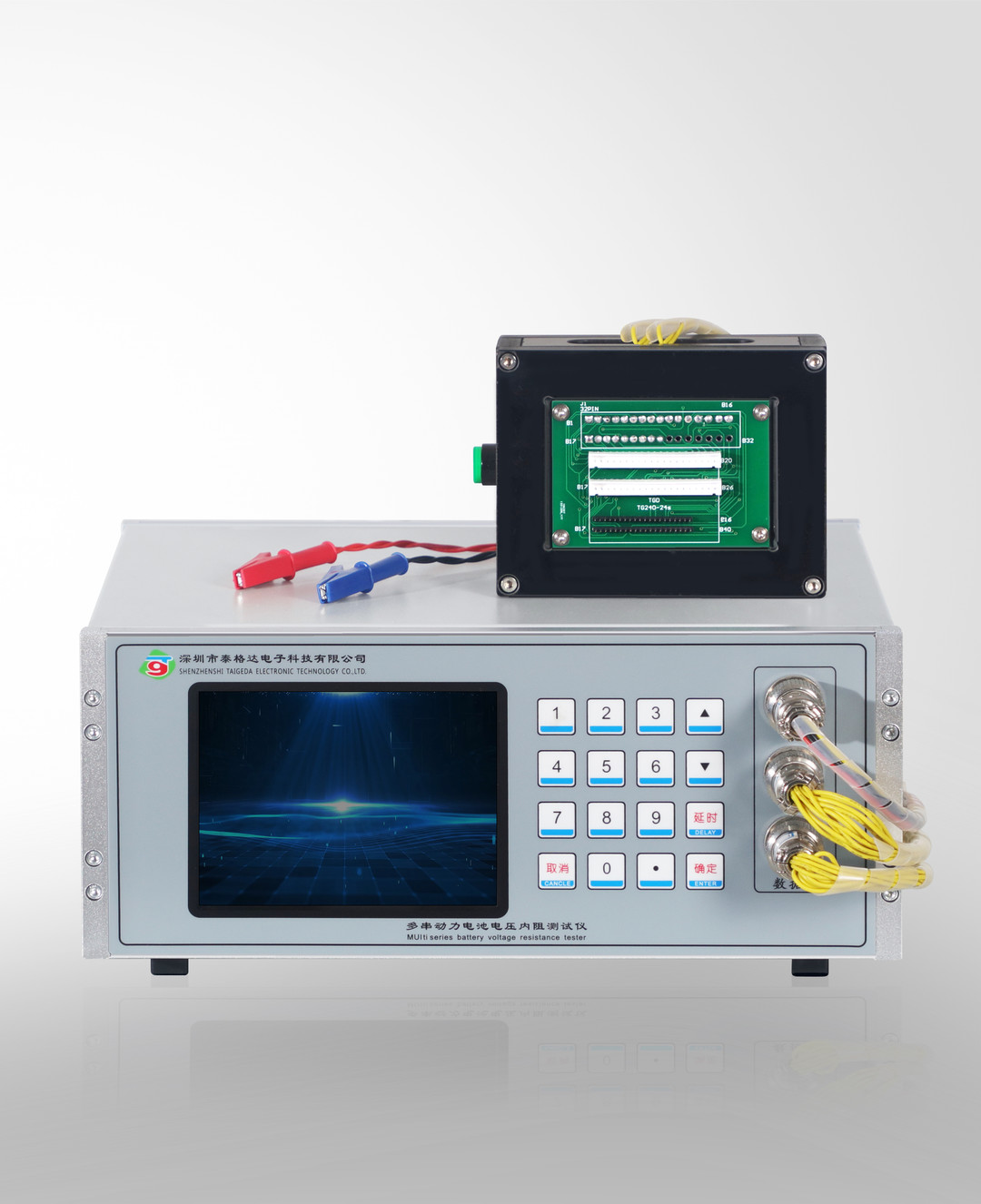

TG240 MULTI-STRING INTERNAL RESISTANCE PRESSURE DIFFERENCE TESTER
Application scope
This device is suitable for:
Check whether the combined batteries are correctly paired. Check the voltage and internal resistance of each battery pack to ensure the consistency of the battery pack.
sProduct characteristics
| 1.Using 4-wire sampling method，the internal resistance and pressure difference can be measured accurately，and the cell combination is good. |
| 2.Can communicate with host computer for data upload. |
| 3.You can save，query，and delete data. |
SpeciPcation parameters
| Product name | multi-string internal resistance pressure difference tester |
| Model | TG240 |
| Chassis size | H:132mm、L:320mm、W:260mm |
| Equipment weight | 5-6KG |
| Operating ambient temperature | 1-50℃ |
| Input power | AC220V±15% |
| Voltage | 0-5.000V accuracy 1mV 5.00-100.00V accuracy 1mV |
| Internal resistance | 0-50mΩ accuracy 0.01mΩ 0-10001mΩ accuracy 0.1mΩ |
